FrSky Corelss Xact 5500 Series LOW HV 8.4V Capable Servos HV5501/HV5502

Special Price $41.99 was $68.99



Availability: In stock
SKU
LOW

The Xact series coreless servos utilize a fully CNC machined aluminum protective case and benefit from metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance. The Xact series servos are available in multiple form factors and configurations to fit many different model types especially where power, reliability, and precision are required.

These high-quality servos support the FBUS protocol, which allows telemetry data (like real-time current, voltage, temperature, etc.) of Xact servos to be transmitted back to the radio by connecting either FBUS capable receiver or flight controller. The Xact servos offer configurable servo travel (90° / 120° / 180°). Servo travel along with other options are now available to be set via the ETHOS Xact configuration tool or the Freelink app.

FEATURES

  • Supports F.Port 2.0 (FBUS) SBUS and PWM protocol
  • High durability with metal gear and all-aluminum CNC machined protective case
  • Waterproof design gives stronger durability for RC vehicles in wet conditions
  • 8.4V high voltage capable operation with good speed performance
  • Built-in dual precision balls bearing with hall sensor
  • Supports over-current and over-hot monitor and alarm
  • Updatable firmware ensures the performance superior

SPECIFICATIONS

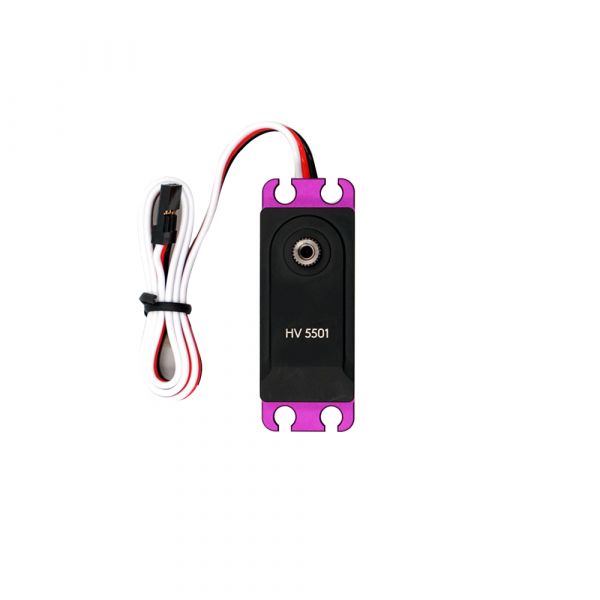

HV5501

  • Torque @ 6.0v – 13.8 kgf.cm / 191.6 Oz-in
  • Torque @ 7.0v – 16.1 kgf.cm / 223.6 Oz-in
  • Torque @ 8.4v – 19.3 kgf.cm / 268 Oz-in
  • Speed @ 6.0v – 0.15 sec/60°
  • Speed @ 7.0v – 0.13 sec/60°
  • Speed @ 8.4v – 0.11 sec/60°
  • Dimensions: 41*20*27mm (L*W*H)
  • Weight: 58g
  • Motor Type: Coreless
  • Servo Horn Spline: Φ6 25T
  • Stall Current:3.21A@6.0v / 3.75A@7.0v / 4.5A@8.4v
  • Operating Voltage Range: 4.8-8.4V
  • Refresh Rate: 1520us/333Hz | 760us/700Hz

HV5502

  • Torque @ 6.0v – 8.0 kgf.cm / 111.1 Oz-in
  • Torque @ 7.0v – 9.8 kgf.cm / 136.1 Oz-in
  • Torque @ 8.4v – 11.2 kgf.cm / 155.5 Oz-in
  • Speed @ 6.0v – 0.10 sec/60°
  • Speed @ 7.0v – 0.08 sec/60°
  • Speed @ 8.4v – 0.07 sec/60°
  • Dimensions: 41*20*27mm (L*W*H)
  • Weight: 58g
  • Motor Type: Coreless
  • Servo Horn Spline: Φ6 25T
  • Stall Current:3.21A@6.0v / 3.75A@7.0v / 4.5A@8.4v
  • Operating Voltage Range: 4.8-8.4V
  • Refresh Rate: 1520us/333Hz | 760us/700Hz
Type Model Dimension
(mm)
Weight
(g)
Refresh
Rate
Motor Torque/Speed
(kgf·cm)/(sec/60°) @8.4V
Torque/Speed
(kgf·cm)/(sec/60°)
@4.2V
Torque/Speed
(kgf·cm)/(sec/60°)
@3.7V
Stall Torque
(gf·cm)
Teeth Sensor Protocol
WING HV5611 19*8*23 8.8 1520us/333Hz | 760us/700Hz Coreless 4.1 / 0.05 1.90 / 0.10 1.40 / 0.11   Φ4 15T Potentiometer
F.PORT 2.0
SBUS
PWM
HV5612 19*8*23 8.8 1520us/333Hz | 760us/700Hz Coreless 4.1 / 0.05 1.90 / 0.10 1.40 / 0.11
Type Model Dimension
(mm)
Weight
(g)
Refresh
Rate
Motor Torque/Speed
(kgf·cm)/(sec/60°) @8.4V
Torque/Speed
(kgf·cm)/(sec/60°)
@7.0V
Torque/Speed
(kgf·cm)/(sec/60°)
@6.0V
Stall Torque
(gf·cm)
Teeth Sensor Protocol
WING HV5101 28*8*29 18 1520us/333Hz | 760us/700Hz Coreless 6.8 / 0.10  5.8 / 0.13 4.9 / 0.16 46 Φ4 16T Hall Sensor F.PORT 2.0



SBUS

PWM

MICRO HV5201 23*12*29 23 4.2 / 0.04 3.5 / 0.05 3.0 / 0.06 39 Φ5 25T
HV5202  4.8 / 0.06 4.0 / 0.07  3.5 / 0.08
HV5203 8.2 / 0.08 6.8 / 0.09  5.9 / 0.11
MIDI HV5301 35*15*31 41 6.1 / 0.08  5.2 / 0.09 4.4 / 0.11 55 Φ6 25T
STD HV5401 40*20*39 72 8.7 / 0.04  7.2 / 0.05  6.2 / 0.06 163
HV5402 14.8 / 0.08  12.5 / 0.10 11.0 / 0.12
HV5403  26.2 / 0.11 22.0 / 0.12 18.8 / 0.15
HV5404 32.0 / 0.13 26.8 / 0.14 22.9 / 0.17
HV5405 36.8 / 0.19 30.8 / 0.23 26.4 / 0.29
LOW HV5501 41*20*27 58 19.3 / 0.11  16.1 / 0.13  13.8 / 0.15 125
HV5502 11.2 / 0.07 9.8 / 0.08  8.0 / 0.10
