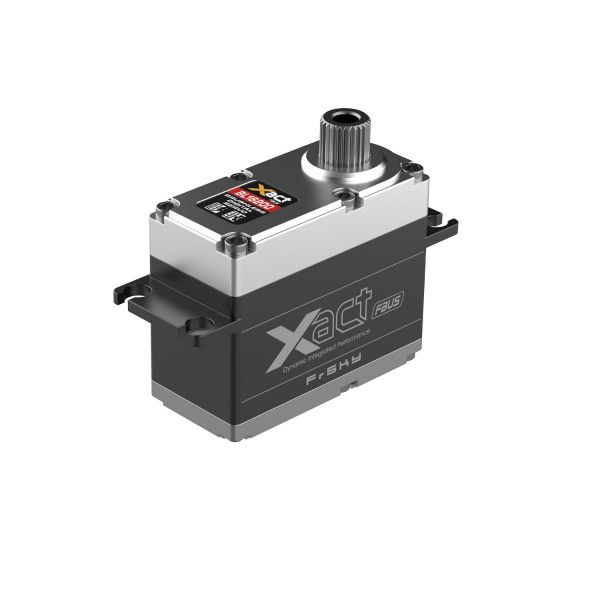

FrSky Giant-Scale Xact BL16200 Servo

The Xact series brushless servos utilize a fully CNC machined aluminum protective case and benefit from metal gears. The BL16200 high-voltage giant-scale servos are capable of supporting up to 16.8V and offer both high speed and torque performance.

The Xact series brushless servos are available in a range of models to support different Torque and Speeds depending on your needs. These servos are ideally matched to models and various applications especially where power, reliability, and precision are required.

The BL16200 servos support the FBUS protocol, which allows telemetry data (like real-time current, voltage, temperature, etc.) of Xact servos to be transmitted back to the radio by connecting either an FBUS-capable receiver or flight controller. The Xact servos offer configurable servo travel (90° / 120° / 180°). Servo travel along with other options are now available to be set via the ETHOS Xact configuration tool or the Freelink app. In addition, support for the CAN485 protocol is also customizable.

FEATURES

• Supports FBUS, SBUS and PWM protocol(*support for CAN485 protocol is customizable)
• High durability with metal gear and all-aluminum CNC-machined protective case
• High voltage capable operation with high speed and big torque performance
• Built-in dual precision ball bearings with hall sensor
• Supports telemetry feedback(Current, Voltage, and Temp.)through FBUS mode
• Updatable firmware ensures the performance superior

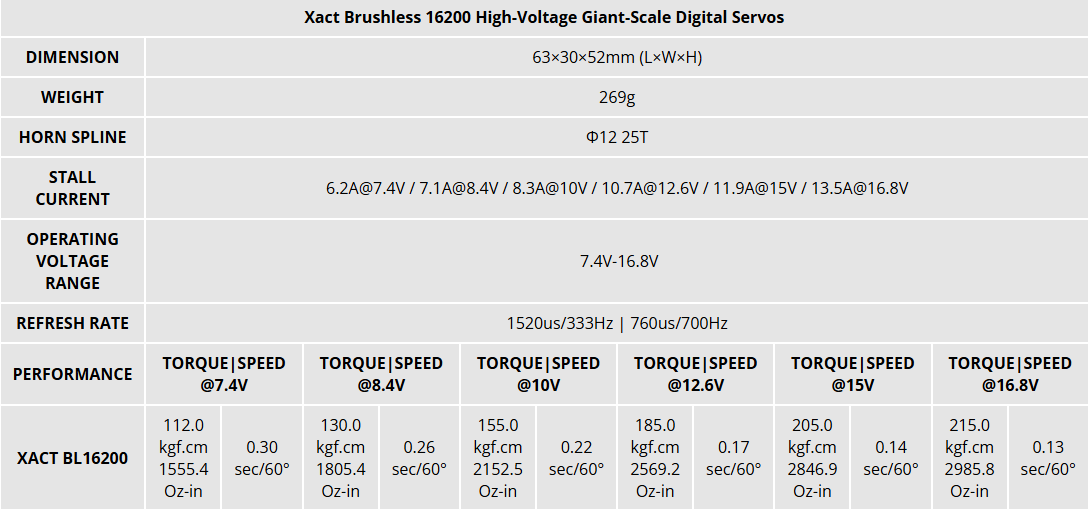

SPECIFICATIONS
