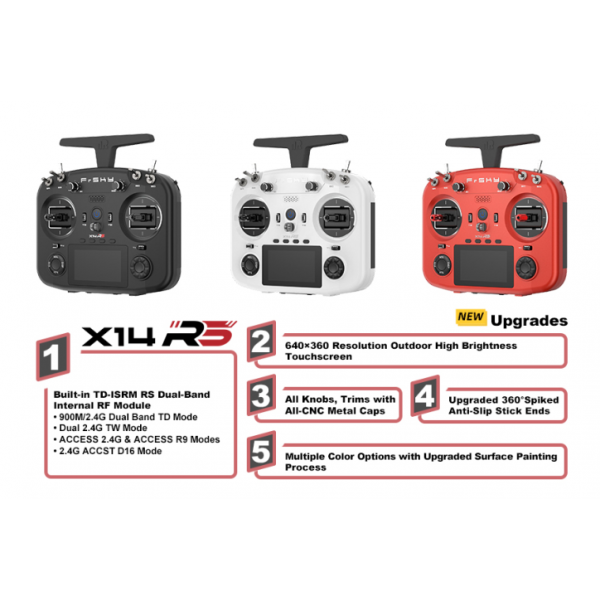

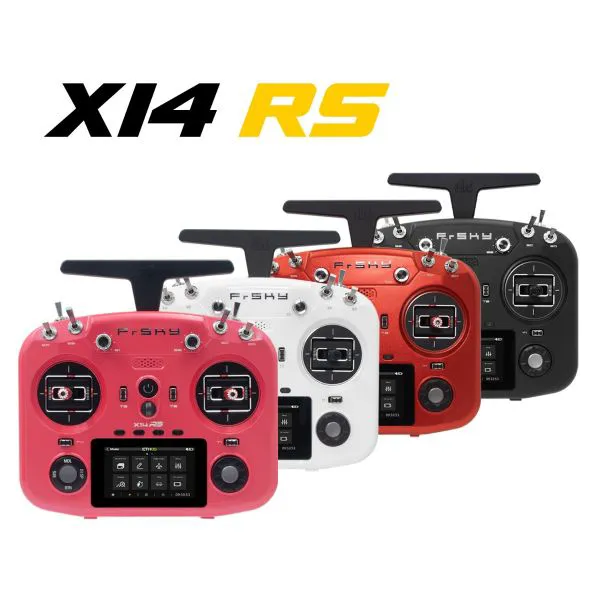

FrSky X14RS

TD-ISRM RS RF PERFORMANCE
With solid performance based on the dual-band 900M/2.4G RF signal link with multiple operating combinations of RF modes, the X14RS model is equipped with the TD-ISRM RS built-in RF module, which is capable of supporting multiple protocols (like TW, TD, etc).
The TD-ISRM RS RF module has the dual 2.4G TW RF mode and supports simultaneous activation of working under ACCESS 2.4G and R9 modes with the same module. In this configuration, the ACCESS 2.4G receiver and R9 receiver can be connected via the SBUS IN/OUT ports to achieve redundant backup. This further enhances the RF signal’s reliability, particularly in long-distance RC operations scenarios.

ERGONOMIC, COMPACT & FLEXIBLE DESIGN | MC18 GIMBALS WITH SPIKED ANTI-SLIP STICKENDS
In alignment with the form factor concept of X18 series radios, the X14 series has been crafted to enhance its portability, reduce weight, and streamline its design. The ergonomic layout ensures that the momentary buttons, shoulder sliders, and switches on the top are effortlessly accessible.
The X14RS offers 4 customizable buttons, thoughtfully placed at the radio panel center for real-time and frequent operations. Take, for instance, when flying an RC glider, to configure these buttons as additional Trim functions by ETHOS, these buttons become invaluable for on-the-fly adjustments then, allowing pilots to adapt the angle of the flaps/surface according to the real-time air environment. Apart from the X14/X14S models, the X14RS features a 3-inch 640×360 resolution display with touchscreen capability, delivering a smoother and more convenient user experience.
The X14RS is equipped with all CNC-machined metal MC18 hall gimbals, with a default travel angle of 60°. By using the limiter accessory tool, the Y-axis travel can be adjusted to a shorter 45° range. Additionally, paired with the 360° all-arounded spiked anti-slip stickends, it ensures precise and confident control even in the most intense and exciting racing moments.

BUILT-IN FLASH STORAGE AND RECHARGING SYSTEM | STAND HOLDER ATTACHABLE STRUCTURE DESIGN
Eliminating the need for users to fret over storage decisions, the X14RS boasts built-in 512MB flash storage, providing ample space for your file storage requirements. Its practicality extends to a battery bay accommodating a 2600mAh Li Battery, easily replaceable and featuring a Type-C port for recharging.
Further enhancing its user-friendly design, the X14RS introduces an attachable and foldable structure on the rear shell. This design allows for the easy installation of an additional stand holder accessory, transforming the X14RS not only can be conveniently carried but it can also to be positioned anywhere, offering operational flexibility without having to hold the radio in your hands.

FEATURES

• Ergonomic and Compact Lightweight Design with Comfortable Rounded Hand Grips
• Easy-to-reach Top Switches and Sliders
• Built-in TD-ISRM RS Dual-Band Internal RF Module
  – 900M/2.4G Dual Band TD Mode
  – Dual 2.4G TW Mode
  – ACCESS 2.4G & ACCESS R9 Modes
  – 2.4G ACCST D16 Mode
• Super Low-Latency and Long-Range Control with Telemetry
• 3” 640×360 Resolution Color TFT Display Touchscreen
• 4 Trims & 4 Quick-Mode Custom Buttons (Front) & 2 Momentary Buttons (Rear)
• Integrate Flash Storage but keep the TF Card Slot for Storage Extension
• Lite Type External Module Bay
• Built-in 6-axis Gyroscope Sensor
• Haptic Vibration Alerts and Voice Speech Outputs
• Supports Recharge System for 2S Li Battery (USB Type-C Interface)
• High-Speed PARA Wireless Training System
• MC18 All CNC High-Precision Hall-Sensor Gimbals with 10 Ball-Bearing
  – Adjustable 45° / 60° stick travel (Additional Travel Limiter Tool is required)
• M4 All-Arounded Spiked Anti-Slip Stick Ends
• ETHOS Operating System
• CNC Aluminum Backshell Stand Holder (Optional)

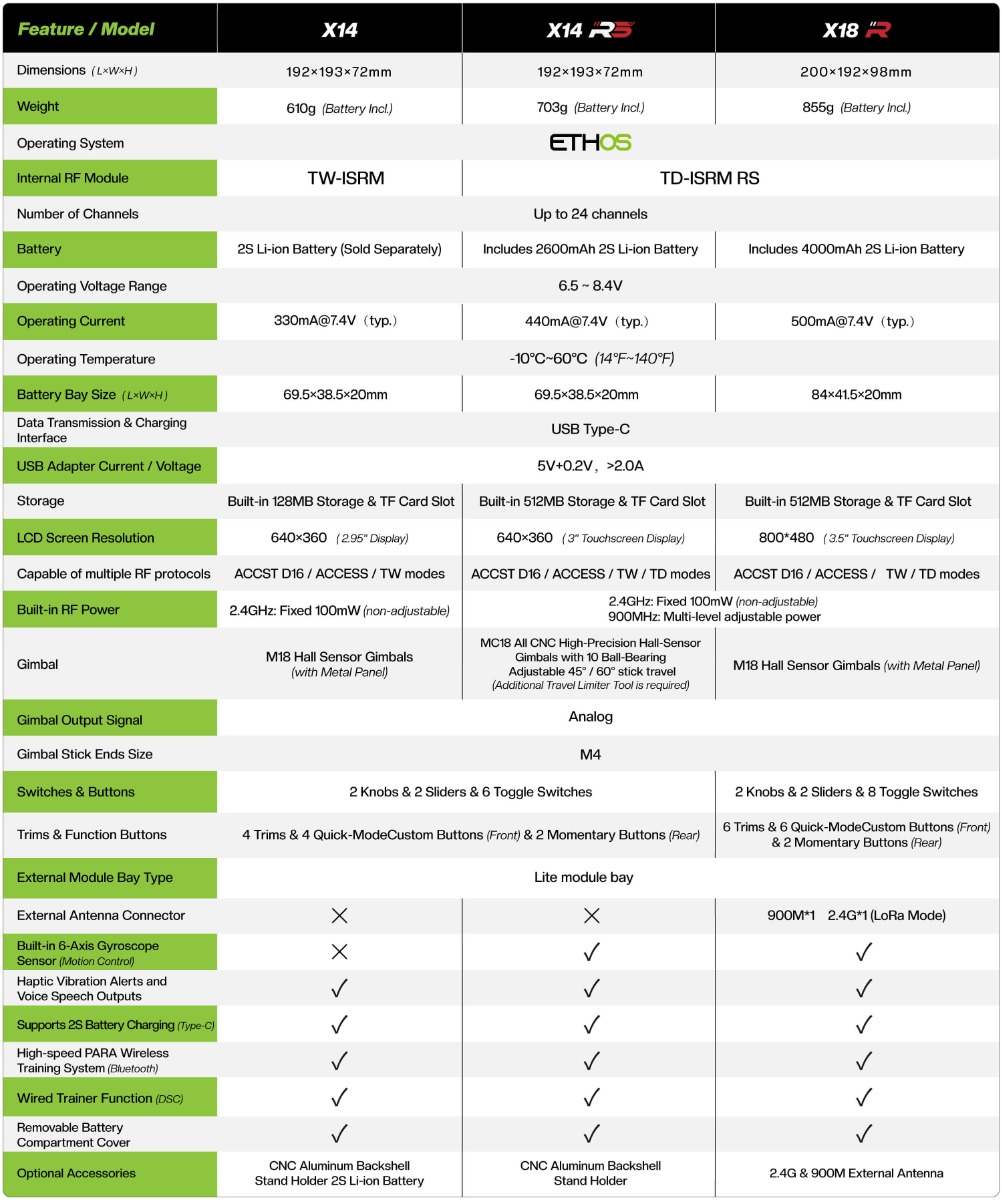

SPECIFICATIONS

• Dimension: 192×193×72mm (L×W×H)
• Weight: 703g (Battery Incl.)
• Operating System: ETHOS
• Internal RF Module: TD-ISRM RS
• 3” Color TFT Display Screen Resolution: 640×360
• Number of Channels: Up to 24 Channels
• Operating Voltage Range: 6.5V ~ 8.4V (2S Li-Battery)
• Operating Current: 440mA@7.4V (typ.)
• Operating Temperature: -10℃ ~ 60℃ (14℉~140℉)
• Built-in 512MB Flash Storage
• Battery Bay Size: 69.5×38.5×20mm (L×W×H)
• Data Transmission & Charging Interface: USB Type-C
• USB Adaptor Voltage and Current: 5V+0.2V, ≥2.0A
• Compatibility: ACCST D16 / ACCESS / TW / TD modes
