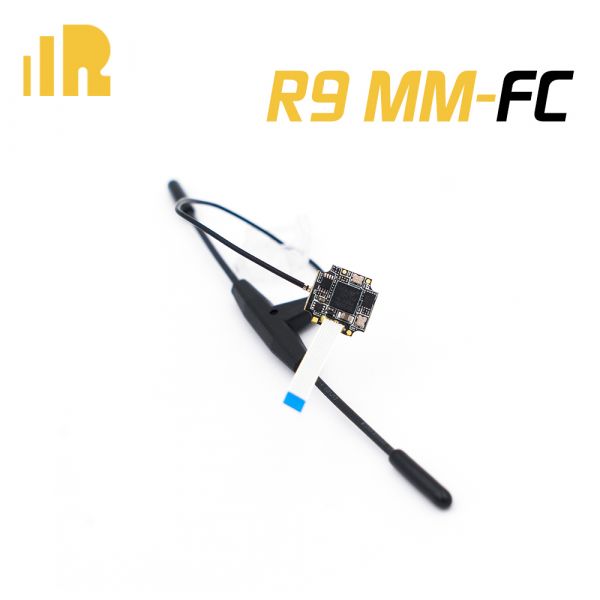

(Available only in USA Warehouse)FrSky R9 MM-FC 900MHz Receiver for the Dedicated Flight Controller

$21.99
Availability: In stock
SKU
R9 MM-FC

Note: Please upgrade the compatible R9M / R9M Lite module with the latest firmware simultaneously, and rebind the devices after the update.

FrSky R9 MM-FC is the ultra mini 900MHz receiver which can be easily mounted in the protection box on our dedicated FrSky flight controller boards. It also features an inverted S.Port output that makes it compatible with more devices. In addition, it can also be used as a standalone receiver.



Specifications

  • Dimension: 12.4*12.8*3mm (L x W x H)
  • Weight: 1g
  • Numbers of channel:
    Non-EU Version: 16CH (Telemetry)
    EU Version: 8CH (Telemetry) / 16CH (Telemetry) / 16CH (No Telemetry)
  • CH16 outputs RSSI
  • Operating Voltage Range: DC 4V~6V
  • Operating Current: 100mA@5V
  • Operating Range: Up to 10km or above
  • Operating Frequency: 915MHz (Non-EU Version) / 868MHz (EU Version)
  • Compatibility: R9M / R9M Lite module



Features

  • F.Port enabled and supported telemetry data transmission
  • Battery Voltage detection supported
  • Low latency and high precision
