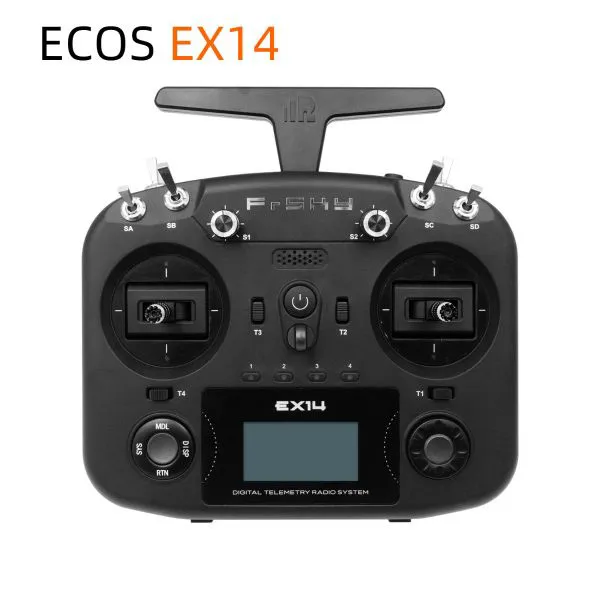

BackOrder FrSky EX14 -Black（Beta Version）

Simplified Power with ECOS
The EX14 is the first FrSky radio to feature the all-new ECOS operating system. It’s designed to provide a more intuitive learning curve and a faster, streamlined setup. While ECOS inherits the powerful look and feel of ETHOS, it achieves a significant level of simplification. This allows users new to RC – across various application scenarios to enjoy a complete and user-friendly experience while keeping both budget and the learning curve to a minimum.

Robust Connectivity & Wide Expansion Options
The EX14 integrates a powerful 2.4GHz internal RF module, enabling direct pairing with ACCST D16 or ACCESS receivers. This ensures reliable, low-latency control performance right out of the box. Additionally, the back of the EX14 features a Lite-external module bay, giving users the flexibility to bind with a wide range of third-party receivers. They can build complex models with ease.

Portable Design & Versatile Options
Built to be lightweight and portable, the EX14 introduces an innovative attachable and foldable rear design. This design supports an optional stand holder accessory, allowing the radio to be positioned anywhere for hands-free operational flexibility. Combined with a comprehensive array of hardware inputs, including multi-position switches and momentary buttons, the EX14 fully meets the requirements of fundamental flight scenarios while offering broad expandability.


FEATURES

• Integrated ECOS Operating System with Built-in 2.4G ISRM internal RF module
  Supports ACCST D16 / ACCESS protocols
  ○ Low-latency (＜4ms) supporting full telemetry
  ○ Less Latency Capability with High Reliability at a Faster Data Rate
• Ergonomic and Compact Lightweight Design with Comfortable Rounded Hand Grips
• Easy-to-reach Top Switches and Sliders
• 128×64 Resolution LED Backlight Monochrome Screen
• 4 Trims & 4 Quick-Mode Custom Buttons (Front) & 2 Momentary Buttons (Rear)
• GM7 Potentiometer Gimbals with an Acrylic Panel
• Lite Type External Module Bay
• Capable of Buzzer Alarm Alert
• Supports Recharge System for 2S Li Battery (USB Type-C Interface)
• Supports Wired Training System via DSC port
• CNC Aluminum Backshell Stand Holder (Optional)



SPECIFICATIONS

• Dimension: 192×193×72mm (L×W×H
• Weight: 550g (Battery Excl.)
• Operating System: ECOS
• Internal RF Module: ISRM-L
• Screen Resolution: 128×64
• Number of Channels: Up to 24 Channels
• Operating Voltage Range: 6.5V ~ 8.4V (2S Li-Battery)
• Operating Current: 100mA@7.4V (typ.)
• Operating Temperature: -10℃ ~ 60℃ (14℉~140℉)
• Battery Bay Size: 69.5×38.5×20mm (L×W×H)
• USB Adaptor Voltage and Current: 5V+0.2V, ≥2.0A
• Compatibility: ACCST D16 / ACCESS
