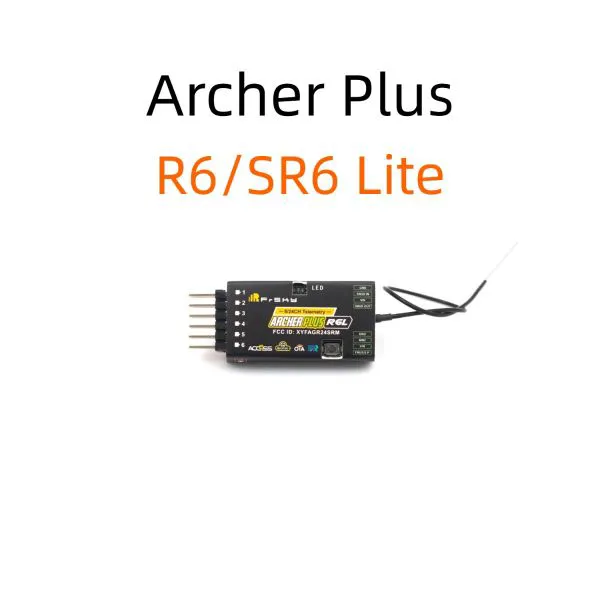

FrSky Archer Plus R6 Lite/ SR6 Lite

The Archer line of receivers has been enhanced further with the addition of the new Archer Plus Series. The Archer Plus Series receivers include some new features. Firstly, an enhanced anti-RF-interference capability can offer a more solid and stable RF performance. These AP series receivers also with both ACCESS and ACCST D16 modes, where the RF protocol is smartly matched during the binding process on the radio. In ACCESS mode, these receivers not only feature OTA wireless firmware upgrades, increased range, and telemetry performance, they also support even more functions like configurable telemetry power and protocol switching(S.Port/F.Port/FBUS).

The AP Lite-series 6-channel receivers feature a compact layout design in functions and are equipped with a 2.4G signal antenna. These receivers have 6 of regular 3-Pin PWM signal output connectors on one end, and can offer multiple function ports through SBUS In/Out, S.Port/FBUS, and AIN on the other end. By using the included connector adapter cable, users can achieve those functions for different system buildings with flexible feature combinations.

Through the specific S.Port cable, the receivers can be easily connected to a transmitter with an S.Port for the firmware upgrade, or sensors for the telemetry. When the S.Port is set to FBUS mode through the ETHOS system, the setting features of all FBUS-capable devices in the link can now be directly configured through the ETHOS system using Lua script tools, and in FBUS mode, the receivers can output 24 signal channels in total.

(*Some features require the support of ACCESS and ETHOS.)

FEATURES

• Enhanced Anti-RF-Interference Capability with More Solid RF Performance
• Smart-matched ACCESS & ACCST D16 modes
• 6 High-precision PWM Channel Ports
• SBUS Out Port (Supports 16CH/24CH mode)
• SBUS In Port (Supports Signal Redundancy)
• Full Control Range with Telemetry (FBUS/F.Port/S.Port)
• Over-The-Air (OTA) Firmware Update
• External Battery/Device Voltage Detection

SPECIFICATIONS

• Dimension: 45×18.5×9mm (L×W×H)
• Weight: 5.6g
• Number of Channels: 6/24 channels
• Operating Voltage Range: 3.5~10V
• Operating Current: ＜65mA@5V
• Operating Range: ＞2km (Full range) (*Range may vary based on local conditions.)
• Variometer Measurement Range
  Altimeter Range & Resolution: -700m to 10000m & 0.1m
  Vertical Speed Range: ±10m/s
• Voltage Measurement Range via AIN2 (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)
• Antenna Connector: IPEX1
• Compatibility: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters
